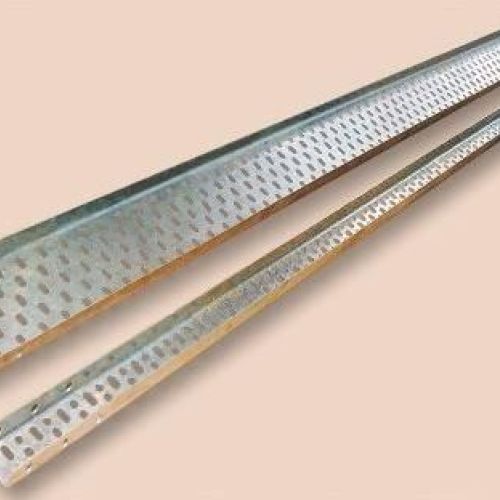

Perforated Cable Tray




Available In following :

  • Width : 50, 100. 150 200 250 300. 350. 400, 450. 500, 550 & 600 mm
  • Four different flange heights vtz 25, 50,7581100 mm
  • Standard length . 2.5 mild


Material made out of :

  • Hot rolled steel sheet as per IS :1079
  • Hot Dip Galvanised alter fabrication to IS : 277: 1992
  • Available in Aluminium confirming to IS: 737-1986
  • Stainless Steel confirming to Grade 316
  • Available in MS, four different thickness viz : 1.6mm. 2mm. 2.54 mm & 3.15 mm


Perforated Cable Tray Accessories

  • Flat Bend - 90. 60. 45 & 30 degree
  • Equal Tee
  • Equal Four way cross
  • Internal Risers - 90.60.45 & 30 degree
  • External Risers - 90,60,45 & 30 degree
  • Reducer
  • Cable Tray Covers
  • Side Couplet Plate
  • Fish Plate/Sleep Plate
  • Earth continuity connector
  • Cover Bracket

Additional Information

Product Code Galvanised Cable Tra
